Single Seat Valve

Manual tank bottom valve

Manual tank bottom valve

●Manual tank bottom valve is a pneumatically operated single seat valve which is assembled at the bottom of tank,used in diary,food processing, beverage,pharmaceutical and fine chemical industries.
●Tank bottom valve is used to vent the container material and the material will not be stuck in the valve chamber, the design of the seat open to the inside of the container. It avoids the over voltage because the pipe leads to the possibility of accidental opening of the valve. The tank bottom valve has 45 ° and 90 ° two designs, pneumatic and manual interchangeable.

●Size:DN25/1" to DN100/4"
●Temperature :130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Treatment:Ra<0.8μm
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Manual tank bottom valve

Manual tank bottom valve

Tank bottom valve is used to vent the container material and the material will not be stuck in the valve chamber, and the design of the seat opens to the inside of the container. It avoids the overvoltage because the pipe leads to the possibility of accidental opening of the valve. The tank bottom valve has 45 ° and 90 ° two designs, pneumatic and manual interchangeable.
●Size:DN25/1" to DN100/4"
●Temperature :130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Treatment:Ra<0.8μm
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Pneumatic Tank bottom valve

Pneumatic Tank bottom valve

●The tank bottom seat valve is a pneumatically operated single seat valve, which is assembled at the bottom of tank,used in diary,food processing, beverage,pharmaceutical and fine chemical industries.
●Tank bottom valve is used to vent the container material and the material will not be stuck in the valve chamber, and the design of the seat opens to the inside of the container. It avoids the overvoltage because the pipe leads to the possibility of accidental opening of the valve. The tank bottom valve has 45 ° and 90 ° two designs, pneumatic and manual interchangeable.
●Size:DN25/1" to DN100/4"
●Temperature :130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Treatment:Ra<0.8μm
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Tank bottom valve / discharge valve

Tank bottom valve / discharge valve

The tank bottom seat valve is a pneumatically operated single seat valve which is assembled at the bottom of tank,used in diary,food processing, beverage,pharmaceutical and fine chemical industries.
●Tank bottom valve is used to vent the container material and the material will not be stuck in the valve chamber, the design of the seat open to the inside of the container. It avoids the over voltage because the pipe leads to the possibility of accidental opening of the valve. The tank bottom valve has 45 ° and 90 ° two designs, pneumatic and manual interchangeable.

●Size:DN25/1" to DN100/4"
●Temperature :130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Treatment:Ra<0.8μm
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Mini divert seat valve

Mini divert seat valve

Mini divert seat valve is particularly suitable for the filling machine equipment and can replace the traditional type of rotary valve.
Guarantee of lifetime for 1.5 million operattion
◆Size:1/2"-3/4",DN15-DN20
◆Material:304/316L
◆Seal-in-one design
◆Meet the high frequency opens and closes
◆No dead angle designed to meet the requirements of 3A-85-00
◆Seal: FDA177.2600
◆Connection : Clamp, weld, thread, DIN、SMS、ISO

Electric regulating divert seat valve

Electric regulating divert seat valve

Electric regulating divert seat valve has torque, stroke, self adaptive function. It freely adjusts the opening and closing direction,It is used in a variety of automatic control systems.
Electric divert seat valve divided into two designs: 1) electric regulating divert seat valve; 2) electric switching divert seat valve.

Power: AC 100V / 220V, DC 24V
Modulating: 0-10V input and output
Stroke time: ON to OFF = 90S, 150S
Size: 1 "-DN20 .... 4" -DN100
Material: 316L, 304
Pressure: Vacuum -10bar
Temperature: 130 ℃

Cleaning drain valve

Cleaning drain valve

The valve mainly solves problem that cleaning ball long-term bubbles in the medium of the dead leg so that easy to produce bacteria to pollute media. Cleaning drain valve begins cleaning when it opens. It prevents cleaning ball and from medium to avoid the dead angle.
Cleaning drain valve is designed for pipeline and tank cleaning equipment online cleaning line.
●Size:DN25/1" to DN100/4"
●Temperature:130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●inner surface treatment:Ra<0.8μm
●Surface treatment: sand blasting, polishing
●Configuration options: position sensor, control unit
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Diaphragm reversing valve

Diaphragm reversing valve

Diaphragm type pneumatic reverse valve with all functions of standard reversing globe valves. It bears stand high pressure valves in shorter height, fights severe water hammer and install side mounted positioner for automatic flow control.
●Size:DN25/1"to DN100/4"
●Temperature:130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Inner surface treatment:Ra<0.8μm
●Surface treatment: sandblasting, polishing
●Configuration options: Position Sensor
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Manual reversing valve

Manual reversing valve

The valve, a manual adjustment of the position and manually implement on opening and closing of reversing valve, can be used in a variety of beverages, food, cosmetics, wine and other various occasions.
●Size:DN25/1"to DN100/4"
●Temperature:130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Inner surface treatment:Ra<0.8μm
●Surface treatment: sandblasting, polishing
●Configuration options: position sensor, control unit
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Globe valve with Thermal insulation jacket

Globe valve with Thermal insulation jacket

The globe valve designed with a valve jacket shell to achieves the best heat transfer. It can keep the easy solidification sensitive medium, flow, such as chocolate, margarine or similar media.

●Size:DN25/1" to DN100/4"
●Temperature:130℃
●Pressure:10bar
●Air supply:4-7bar
●Material:ASTM 304/1.4301,316L/1.4404
●Gaskets:EPDM、FPM、HNBR,FDA177.2600
●Inner surface treatment:Ra<0.8μm
●Outer surface treatment:Sandblasting, polishing
●Configuration options: position sensor, control unit
●Certificate:3-A-53-06,PED/97/23/EC,FDA177.2600

Aseptic diaphragm reversing valve

Aseptic diaphragm reversing valve

The valve has a standard valve function with PTFE diaphragm isolation valve internal and external leakage. Leakage detection provides diaphragm damage condition by leakage pipe.

● Size: DN25 / 1 & quot; to DN100 / 4 & quot;
● Temperature: 130 ℃
● Pressure: 10bar
● Air source: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra & lt; 0.8 & mu; m
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

Reversing globe valve with slow device

Reversing globe valve with slow device

Reversing globe valve with slow device, adjusting the regulator can reduce the actuator speed, prevent clash of the valve core and the valve body to prevent vibration, as well as prolong the service life of the sealing ring.

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

pneumatic reversing globe valve with Valve position regulator

pneumatic reversing globe valve with Valve position regulator

The reversing seat valve is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
Valve position adjustable valve can achieve flow adjustment wrench. This configuration has the advantage of low cost to achieve the same flow regulation purposes.

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Configuration options: position sensor, a control unit
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

pneumatic reversing globe valve

pneumatic reversing globe valve

he reversing valve seat is a sanitary single seat pneumatic operation valve. In the food processing industry, beverage production of pharmaceutical and fine chemical industry, it has a wide range of applications.

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600

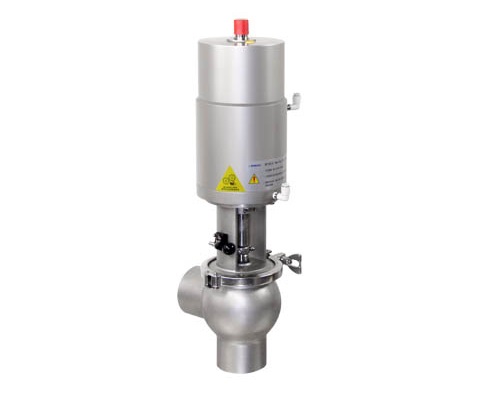

Pneumatic divert seat valve with steam sterilization

Pneumatic divert seat valve with steam sterilization

Pneumatic divert seat valve with steam sterilization, a single seat pneumatic valve in sanitary field which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries

The valve has a standard function of reversing seat valve equipped with a stem that can be sterilized by cleaning
fluid or steam to ensure the stem is thoroughly cleaned.

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● Air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Inner surface treatment: Ra <0.8μm
● Surface treatment: sandblasting, polishing
● Certificate 3-A-53-06, PED / 97/23 / EC, FDA177.2600

pneumatic divert seat valve with control unit

pneumatic divert seat valve with control unit

● pneumatic divert seat valve with control unit is a hygienic single seat pneumatically operated valve which has been widely used in the food processing industry, beverage production of pharmaceutical and fine chemical industries.
● The seat valve automatically operated by a single or double acting pneumatic actuators with compressed air to push the shaft to locate the valve open or closed position.
● single-acting cylinder actuators rotate 180 degrees to achieve a valve normally open and normally closed.

● Size: DN25 / 1 "to DN100 / 4"
● Temperature: 130 ℃
● Pressure: 10bar
● air supply: 4-7bar
● Material: ASTM 304 / 1.4301,316L / 1.4404
● Seal: EPDM, FPM, HNBR, FDA177.2600
● Processing: Ra <0.8μm
● Certificate: 3-A-53-06, PED / 97/23 / EC, FDA177.2600
Control unit:
● Power: DC 24V ± 10%
● Single acting (standard), double acting (option)
● Self-tuning Valve position feedback function
● Supports analog signal (4-20mA) & electrical (DC24V) Output
● Support for AS-I BUS
● Supports manual and automatic operation

File Description Language Size
Single Seat Valve Including: pneumatic, electric, manual, two-way, three-way, four-way, five-way, six-way, seven-way, multi-way and other single seat valves English 3.18MB)
Valve Controller Contains, valve positioner, valve control unit, valve position feedback English 4.66MB)
Self-Control Valve It includes various structure adjustment valves such as angle seat valve, globe valve, single seat valve, V-type ball valve, butterfly valve, etc. English 9.6MB)
Anti-Mixing Double Seat Valve Two-way, three-way, four-way, five-way, six-way and other anti-mixing valves English 10.01MB)
