Diaphragm valve

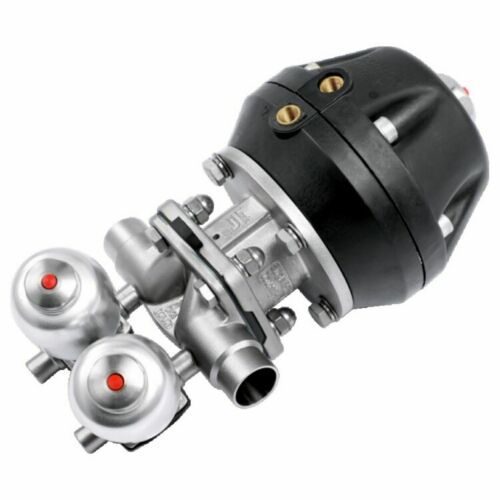

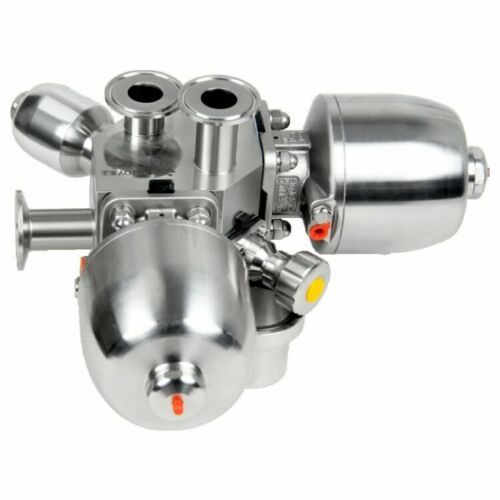

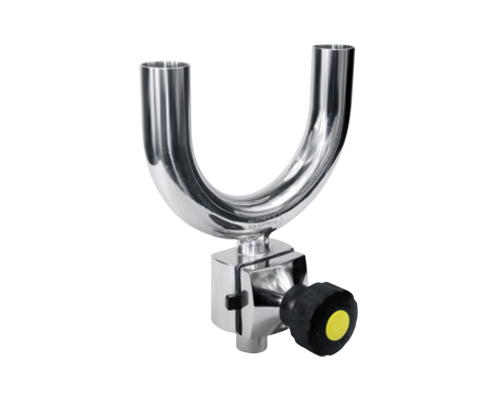

Various Combinations Diaphragm Valve

Various Combinations Diaphragm Valve

Various Combinations Diaphragm Valve
The structures of valves have T-type,L-type, U-type, direct-way, multi-ports way, etc. It is mainly used in liquid sampling, biological systems, laboratories and other projects .
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing time can be up to 150 million life in 3 bar working pressure.
●Size: 1/4"-3/4",DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC,3A/54-04/1580,FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM 8bar, PTFE 6 bar(Option)
EPDM 6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Cast Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic

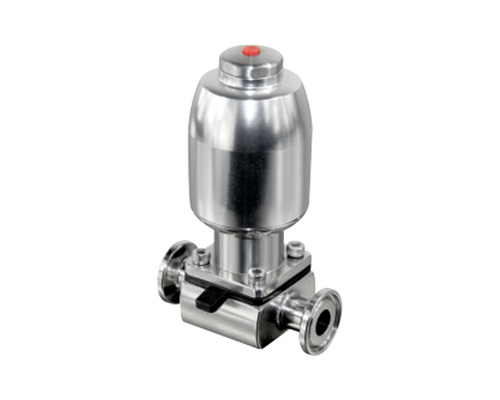

Multi functional high frequency canned diaphragm valve

Multi functional high frequency canned diaphragm valve

Multi functional high frequency canned diaphragm valve has a dual-station cylinder and a flow-adjustable filling valve.
For fast filling and to prevent spillage or spillage of the bottle.
The flow rate is maximum when 1 cylinder is working;
When the cylinder is working, the flow rate is the smallest, and the flow rate adjustment device can also be used to adjust the flow rate when the flow 2# cylinder is working.
●SIZE: 1/4 "-3/4", DN6-DN15
●Standard BPE 3A DIN ISO IDF
● Certification PED/97/23/EC, 3A/54-04/1580, FDA.177.2600
●Maximum temperature: -30 to 150 ° C (depending on the sealing material) (stainless steel actuator)
●Maximum temperature: -30 to 130 ° C (depending on the sealing material) (plastic actuator)
● Maximum pressure: one direction (DELTA P=100%)
Normally closed rubber 8bar, PTFE 6bar (optional)
Normally closed rubber 6bar, PTFE 4.5bar (standard)
Normally open and double acting rubber 8bar, PTFE 6bar
● Replacement of different actuators can meet higher pressure levels
●Forged valve body: 1.4404/316L/1.4435 BN2
● Casting valve body: 1.4404/316L
● Connection method: welding, clamp, flange, thread
●Operation mode: manual and pneumatic

Diaphragm Regulating Valve

Diaphragm Regulating Valve

Diaphragm regulating valves are mainly used in biopharmaceutical fluid control system. The design of valve is completely empty without dead angles, liquid contact parts are high purity stainless steel and PTFE material, so it is very suitable for high purity requirements of processing piping systems. The body structure has a variety of forms and combinations (Please refer to the DONJOY diaphragm valve data).

Analog input: 0/4-20mA, 0-5/10V
Power: DC24V ± 10%
Protection: IP68 rating
Support for manual operation
One-touch auto-tuning function
Size: 1"-4", DN25-DN100
Material: 1.4435NB2, 316L, 1, .4404, ASME BPE 316L
Highest Temperature: -30 to 150 ℃ (Depending on seal material) (Stainless steel actuators)
Highest Temperature: -30 to 130 ℃ (Depending on seal material) (Plastic actuator)
Maximum Pressure: Unidirectional (DELTA P = 100%)
Normally closed rubber 8bar, PTFE 6bar (Option)
Normally closed rubber 6bar, PTFE 4.5bar (Standard)
Normally open and double acting rubber 8bar, PTFE 6bar

Pneumatic Diaphragm Valve

Pneumatic Diaphragm Valve

Pneumatic Diaphragm Valve
●Diaphragm valves, manually or pneumatically operated, are specifically designed for hygienic and aseptic processes in the pharmaceutical industries.
●The valve is excellent for flow control as well as for open/close duties.
●The diaphragm provides body seal as well as seat seal. There are no paths to outside environment so it is suitable for aseptic processes.
● When valve is closed, a pressure pad which supports diaphragm to move towards sealing face on body. When pressure plate moves, diaphragm flexes and is forced down onto seat area in the centre of body, thus it closed off flow path through body.
● The interrelationship of body is to prevent the compression of diaphragm.
● The valve can be manually/pneumatically operated, and can be controlled by control tops and solenoid valves.
◎ Size: 1"-4", DN25-DN100
◎ Pressure: 10bar (145 PSI)
◎ Material: ASTM 316L, 1.4404,1.4435 NB2 Fe <0.5%
◎ Temperature: -20 ℃ + 150 ℃ (EPDM) -4 ℉ + 302 ℉ (+ 140 ℃ (SIP, 30) 284 ℉)
◎ Connection: Clamp, Weld, Thread, 3A BPE DIN SMS IDF ISO
◎ Body Structure: straight, tee, U-tee, tank bottom valve, multi-channel diaphragm
◎ Diaphragm Material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Viton)
◎ Certificate: 3A-54-02 / 1580, PED 97/23 EC, FDA177.2600

Manual diaphragm valve

Manual diaphragm valve

Manual or pneumatic operation, specifically for sanitary and aseptic processes in the pharmaceutical industry. This valve is ideal for fluid control and on/off tasks. The diaphragm provides a body seal and a seat seal. There is no path to the outside environment, so the diaphragm valve is suitable for aseptic processes. When the valve is closed, the pressure pad supporting the diaphragm moves toward the sealing surface on the valve body. As the
pressure plate moves, the diaphragm bends and is forced to the seat area in the center of the valve body, thus closing the fluid path to the valve body. The relationship between the valve body and the pressure plate prevents the compression of the diaphragm. The valve can be operated manually or pneumatically, or it can be controlled by a controller and solenoid valve.
◎Specifications: 1"-4", DN25-DN100
◎ Pressure: 10bar (145 PSI)
◎Material: ASTM 316L, 1.4404, 1.4435 NB2 Fe<0.5%
◎Temperature: -20°C +150°C (EPDM)-4°F+302°F (+140°C (SIP, 30) 284°F)
◎Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◎ valve body structure: straight through, three-way, U-shaped three-way, tank bottom valve, multi-channel diaphragm valve
◎ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◎ Certification: 3A-54-02/1580, PED 97/23 EC, FDA177.2600

Third generation high clean diaphragm valve

Third generation high clean diaphragm valve

Manual or pneumatic operation, specifically for sanitary and aseptic processes in the pharmaceutical industry. This valve is ideal for fluid control and on/off tasks. The diaphragm provides a body seal and a seat seal. There is no path to the outside environment, so the diaphragm valve is suitable for aseptic processes. When the valve is closed, the pressure pad supporting the diaphragm moves toward the sealing surface on the valve body. As the pressure plate moves, the diaphragm bends and is forced to the seat area in the center of the valve body, thus closing the fluid path to the valve body. The relationship between the valve body and the pressure plate prevents the compression of the diaphragm. The valve can be operated manually or pneumatically, or it can be controlled by a controller and solenoid valve.
◎Specifications: 1"-4", DN25-DN100
◎ Pressure: 10bar (145 PSI)
◎Material: ASTM 316L, 1.4404, 1.4435 NB2 Fe<0.5%
◎Temperature: -20°C +150°C (EPDM)-4°F+302°F (+140°C (SIP, 30) 284°F)
◎Connection: clamp, welding, thread, 3A BPE DIN SMS IDF ISO
◎ valve body structure: straight through, three-way, U-shaped three-way, tank bottom valve, multi-channel diaphragm valve
◎ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Vitong)
◎ Certification: 3A-54-02/1580, PED 97/23 EC, FDA177.2600

Pneumatic Tank Bottom Diaphragm Valves

Pneumatic Tank Bottom Diaphragm Valves

Pneumatic tank bottom diaphragm valve is specially used for discharging medium from tanks, no resort at the chamber.
◆ Size: 1"-4", DN25-DN100
◆ Highest Temperature: -30 to 150 ℃ (Depending on diaphragm) (Stainless steel actuator)
◆ Highest Temperature: -30 to 130 ℃ (Depending on diaphragm) (Plastic actuator)
◆ Maximum Pressure: Unidirectional (DELTA P = 100%)
Normally closed rubber 8bar, PTFE 6bar (option)
Normally closed rubber 6bar, PTFE 4.5bar (standard)
Normally open and double acting rubber 8bar, PTFE 6bar
◆ Facelift different actuators can meet higher pressure rating
◆ Forged Body: 1.4404 / 316L /1.4435 NB2
◆ Cast body: 1.4404 / 316L
◆ Connection: Weld, Clamp, Flange, Thread
◆ Body Structure: 2 channels, 3 channels, etc.
◆ Diaphragm Material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Viton)
◆ Certificate: 3A-54-02 / 1580, PED 97/23 EC, FDA177.2600

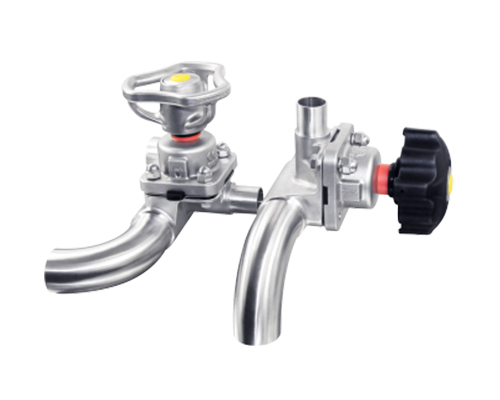

Manual diaphragm tank bottom valve

Manual diaphragm tank bottom valve

Manual tank bottom diaphragm valve is specially used for discharging medium from tanks, no resort at the chamber.
◎ Size: 1"-4", DN25-DN100
◎ Pressure: 10bar (145 PSI)
◎ Material: ASTM 316L, 1.4404,1.4435 NB2 Fe <0.5%
◎ Temperature: -20 ℃ + 150 ℃
◎ Connection: Weld, Clamp, Thread, 3A BPE DIN SMS IDF ISO
◎ Body structure: U type tee + sampling valve; U-type links
◎ Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Viton)
◎ Certificate: 3A-54-02 / 1580, PED 97/23 EC, FDA177.2600

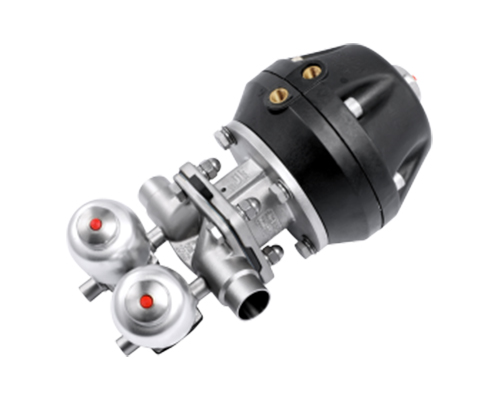

Weld Combined Multi port Diaphragm Valve

Weld Combined Multi port Diaphragm Valve

Welding Combined Multiport Diaphragm Valve
●GMP valve
Mainly used in high pure water or other distribution system of water point vertical tube which can effectively reduce pipeline deadleg. One valve is placed in a horizontal position to keep an angle of emptying, the other, a host valve, need be placed vertically. The outlet is a no bacterial breeding or process cross infection sample mouth when the valve opens.
●SAP valve
Mainly used in a horizontal pipeline system, host valve is placed in a horizontal position to maintain a certain self-emptying angle. The passage hole is in the lowest discharge point of the host valve waterway.
Size: 1/2"-4", DN6-DN100
Material: 316L/1.4404,1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single Mdiaphragm: EPDM, FPM, Silicon
Operating: Manual/ Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-32B

Multi port Diaphragm Valve M-32B

Multi port Diaphragm Valve M-32B
2 control valve, 3 ports
Suggest S1 up installation
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-44A

Multi port Diaphragm Valve M-44A

Multi port Diaphragm Valve M-44A
4 control valves, 4 ports
S2 and S4 horizontal installation
S1 and S3 vertical installation
Non-directional import and outport
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-65A

Multi port Diaphragm Valve M-65A

Multi port Diaphragm Valve M-65A is the most progressive design for meeting high clean in pharmacy industry. Assembly of traditional welding manifold valve systerm is complicated, implementation of period is long, large space is ooccupied with expensive cost on inspection.

5 control valves, 6 ports
5 valves vertical place
Dead zone = ≤ 1D
Size: 1"-2",DN25-DN50
Material: 316L/1.4404,1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-62A

Multi port Diaphragm Valve M-62A

Multi port Diaphragm Valve M-62A
2 control valves, 6 ports
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404,1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-32E

Multi port Diaphragm Valve M-32E

Multi port Diaphragm Valve M-32E
2 control valves, 3 ports
Dead zone = ≤ 1D
Size: 1"-2",DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve-M-32A

Multi port Diaphragm Valve-M-32A

Multi port Diaphragm Valve-M-32A
2 control valves, 3 ports
Three-way reversing valve
S1 suggested up installation
Dead zone = ≤ 1D
Size: 1"-2",DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-32H

Multi port Diaphragm Valve M-32H

Multi port Diaphragm Valve M-32H
2 control valves, 3 ports
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi-channel bottom diaphragm valve MG-32B

Multi-channel bottom diaphragm valve MG-32B

Multi-channel bottom diaphragm valve MG-32B
2 control valves, 3 ports
A water point valve seat
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404,1.4435 NB2 Fe<0.5%
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Multi port Diaphragm Valve M-53A

Multi port Diaphragm Valve M-53A

Multi port Diaphragm Valve M-53A
3 control valves, 5 ports
A water point valve seat
Two integrated closed-loop sampling valve seats
Suggest S1 up installation
Dead zone = ≤ 1D
Size: 1"-2", DN25-DN50
Material: 316L/1.4404, 1.4435 NB2 Fe<0.5%
Temperature: -20℃ +150℃
Pressure: 10bar
Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
Operations: Manual/Pneumatic
Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor

Mini Pneumatic Diaphragm Valve

Mini Pneumatic Diaphragm Valve

The structures of Mini Pneumatic Diaphragm Valve have T-type,L type, U-type, direct-way, multi-ports way, etc. It is mainly used in liquid sampling,biological systems, laboratories and other projects .
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing time can be up to 150 million life in 3 bar working pressure.
●Size: 1/4"-3/4",DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC,3A/54-04/1580,FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM 8bar, PTFE 6 bar(Option)
EPDM 6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar, PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting Body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Pneumatic actutors are suitable for body of direct-way, three way, multiport, weld parts, tank bottom valve

Mini Manual Diaphragm Valve

Mini Manual Diaphragm Valve

Mini Manual Diaphragm Valve
It is mainly used in liquid sampling, biological systems, laboratories and other projects
The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
●Size: 1/4 "-3/4", DN6-DN15
●Standard: BPE 3A DIN ISO IDF
●Certificate: PED/97/23/EC,3A/54-04/1580,FDA.177.2600
●Max Temperature: -30℃ to 150℃ (Depending on seal material)(Stainless steel actuator)
●Max Temperature: -30℃ to 130℃ (Depending on seal material)(Plastic actuator)
●Max Pressure: One way (DELTA P=100%)
EPDM8bar, PTFE 6 bar(Option)
EPDM6bar, PTFE 4.5 bar(Option)
Double action EPDM 8 bar,PTFE 6 bar
●Assembling different actuators can meet higher pressure rating.
●Forged Body: 1.4404/316L/1.4435 BN2
●Casting the body: 1.4404/316L
●Connection: Clamp, Weld, Thread, Flange
●Operations: Manual and pneumatic

File Description Language Size
Diaphragm valve Diaphragm valves of various types such as straight-through, three-way, multi-way, manual, pneumatic, electric, etc. 中文 10.51MB)
Valve controller Contains, valve positioner, valve control unit, valve position feedback 中文 4.66MB)
Radial diaphragm valve Diaphragm valves of various types such as straight-through, three-way, multi-way, manual, pneumatic, electric, etc. 中文 4.27MB)
