Cleaner

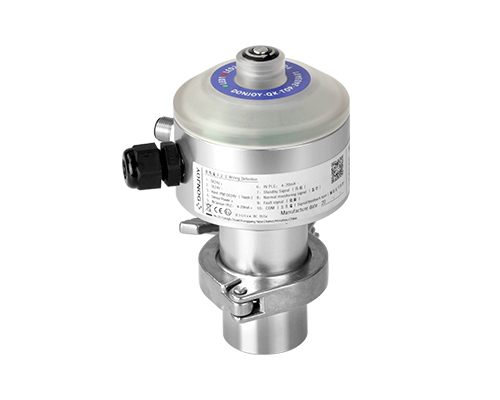

QK-TOP-2403A01 Monitor is a sensor used to detect whether the cleaner has completely cleaned the inside of the tank in a closed container. If the tank cannot be cleaned properly, the monitor will provide feedback signals to the PLC and visually inspect the different colors of the LED to distinguish the various states of the cleaner during the cleaning process.

Advantage
lower noise: about 40dB
smaller flow consumption: save 20%
longer service life: about 3,000 hours
shorter cleaning time
better cleaning effect
Application
◆Rotary cleaning ball s

Application
◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball：Sphe

Cleaning angle：180°；360°
Sphere options: 1) round ball; 2) oval ball
Size：28mm / 91mm
Material：316L/304
Connections：female thread/male thread(1/2"-2"BSP/BSPT),clamp(1"-2"),Bolt(1"-2"),weld(1“-2")

◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball：Spherical is oval and round,the injector jet is flat groove type
Cleaning Radius：Maximum 4 m（4bar）
Cleaning angle：180°；360°
Sphere options: 1) round ball; 2) oval ball
Size：28mm / 75mm
Material：316L
Connection：female thread/male thread(1/2"-2"BSP/BSPT),clamp(1"-2"),Bolt(1"-2"),weld(1“-2")

◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball：Spherical is oval and round,the injector jet is flat groove type
Cleaning Radius：Maximum 4 m（4bar）
Cleaning angle：180°；360°
Sphere options: 1) round ball; 2) oval ball
Size：28mm / 75mm
Material：316L
Connection：female thread/male thread(1/2"-2"BSP/BSPT),clamp(1"-2"),Bolt(1"-2"),weld(1“-2")

◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball：Spherical is oval and round,the injector jet is flat groove type
Cleaning Radius：Maximum 4 m（4bar）
Cleaning angle：180°；360°
Sphere options: 1) round ball; 2) oval ball
Size：28mm / 75mm
Material：316L
Connections：female thread/male thread(1/2"-2"BSP/BSPT),clamp(1"-2"),Bolt(1"-2"),weld(1“-2")

Applications
◆Rotary injector is sanitary water cleaner tank with 360 °coverage in a given tank or process container. The injector is flowing liquid through impeller generates kinetic energy
◆Rotary injector with unique self cleaning function, internal is completely cleaning.

Technical specifications
◆Cleaning Radius：Diameter14M
◆Flow：4-45m3
◆Inlet pressure：4-10bar
◆Suggest pressure：6bar
◆Max temperature：95℃
◆Connections：thread BSP, 1.5"-DN40/1"DN25
◆ClampsDIN/INCH, 1.5"-DN40
◆Material：316L/1.4404，PTFE
◆Lubrication: cleaning medium

The cleaning valve, mainly solve the dead space formed by the cleaning ball for a long time in the medium, thereby contaminating the medium due to bacterial reproduction. When the valve is open,it is cleaning,when it is closed, keeping the cleaning ball and medium does not contac, so as to avoid the dead angle.
●Cleaning Radius：3M
●Size：DN25/1"到DN100/4"
●Temperature：130℃
●Pressure：10bar
●Air supply：4-7bar
●Material：ASTM 304/1.4301，316L/1.4404
●Seal：EPDM、FPM、HNBR，FDA177.2600
●Inner surface treatment：Ra<0.8μm
●Surface treatment: sand blasting, polishing
●Configuration options: position sensor, control unit
●Certificate：3-A-53-06，PED/97/23/EC,FDA177.2600
