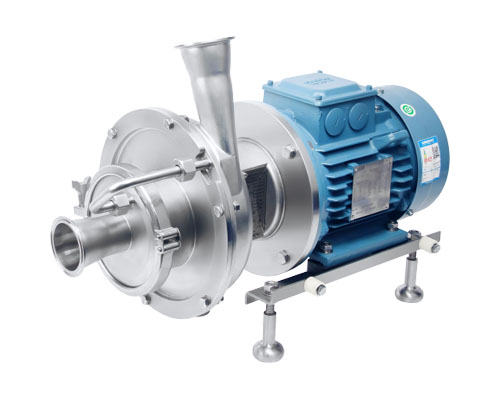

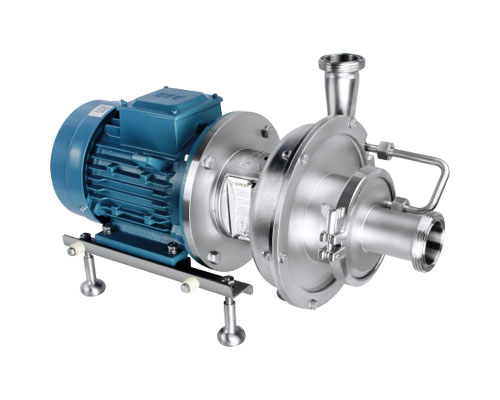

Self-priming centrifugal pump ZLX

Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump ZLX
Self-priming centrifugal pump
Self-priming centrifugal pump
Self-priming centrifugal pump ZLX

Self-priming centrifugal pump ZLX

Application

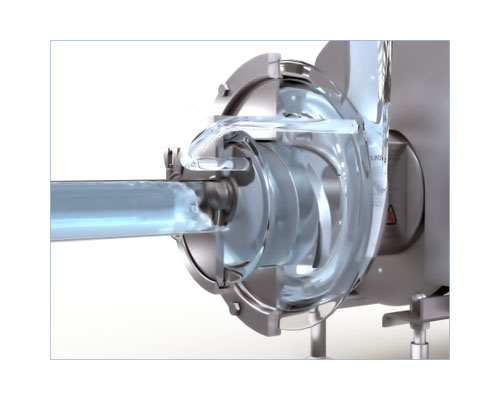

ZLX series is a self-priming centrifugal pump that can be used as a self-priming reflux pump in a CIP system or as a centrifugal pump to deliver a material with a maximum viscosity of 500CP.S (mPas). The pump has the technical advantages of high efficiency, low noise, high cleanliness and easy cleaning of liquid parts. The pump is designed with a leading impeller to reduce the necessary cavitation allowance of the pump. Self-priming centrifugal pump is suitable for food processing, pharmaceutical and chemical industries. It is designed for pumping materials containing air or gas. Can be used in negative inhalation with priority sucking and filtering equipment.

Technical specifications

Maximum flow rate Max Flow rate: 50m³/h
Maximum head Max Head: 70 H/M
Maximum temperature Max temperature : -20 ° C to 150 ° C
Material Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5%
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Mechanical seal: single machine seal, double machine seal
Inlet/Outlet Connections: Thread, Clamp, Flange, Aseptic Flange
Certification: 3-A-02-10 (N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004;
