Design Features

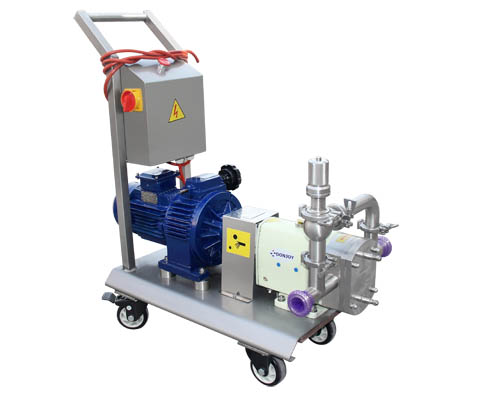

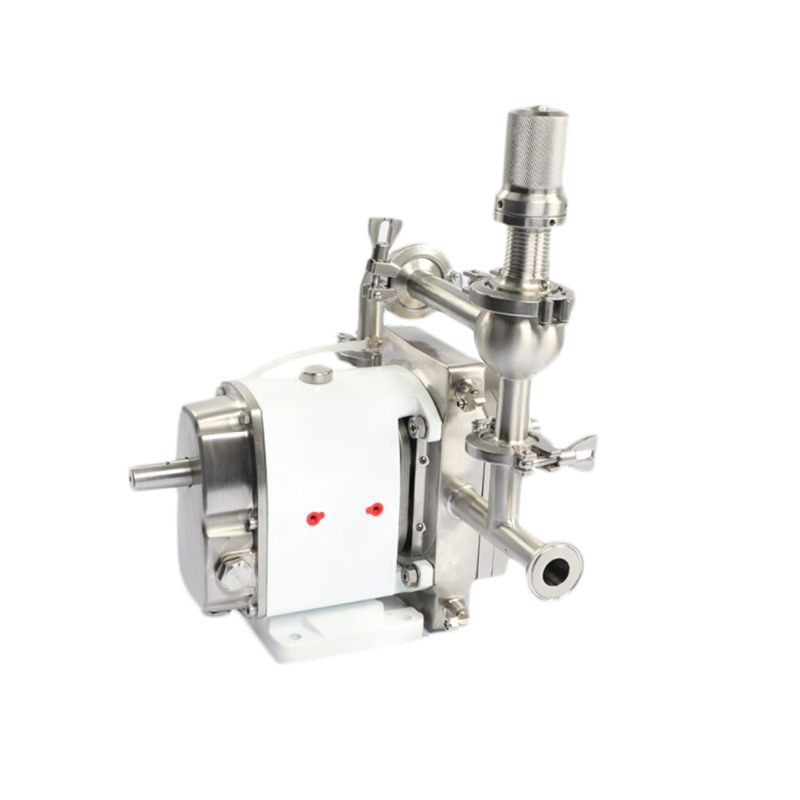

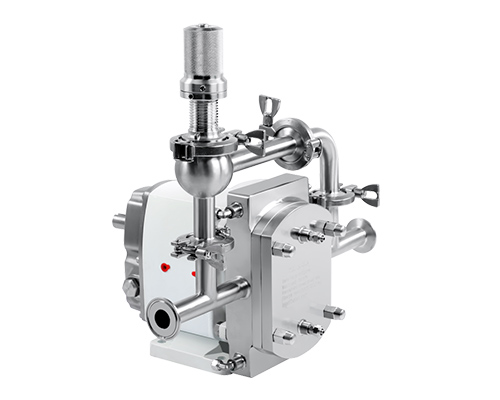

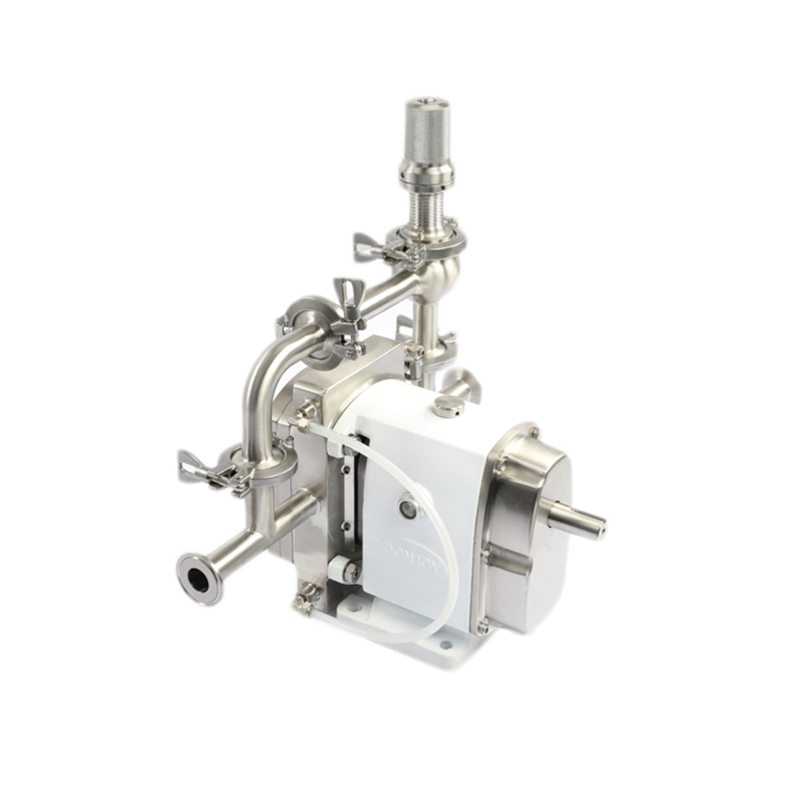

Rotor pump with External safety valve
◆This pump can solve over high pressure problem caused by congestion of pump outlet or other equipment. This device guarantees to keep pressure of pipeline stable and safe in case of loss of material.
◆Note: this device is suitable for low viscosity materials.
Technical specifications
◆ Maximum flow: 90m3 / H
◆ Maximum pressure: 20bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 750 rpm
◆ Material: ASTM 316L, 1.4404
◆ Inside surface: Ra0.8μm
◆ Certificate: 3-A-02-11NO.1579; CE-MD / 06-42; FDA.177.2600
◆ Inlet/outlet: 1) Horizontal TUL; 2) Vertical TUR
◆ Butterfly rotor (standard), Tri-clover rotor, Two leaf rotor, Single leaf rotor
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for CIP cleaning and SIP sterilization
A variety of motor options:
1) Wide voltage efficiency motors IEC EN IE2 efficiency rating (equivalent to China two energy efficiency), PTC thermistor.
2) Explosion - proof motor
3) Inverter motor
Voltage: AC 220V, 380V, 460V, 690V. 50HZ, 60HZ
