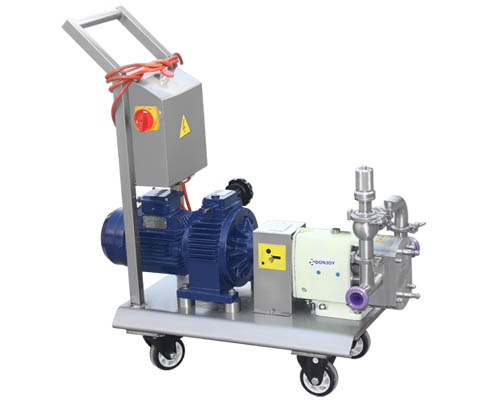

Lobe pump with Servo motor

Lobe pump with Servo motor
Lobe pump with Servo motor
Servo motor driven rotor pump
Sanitary Lobe pump with Servo motor

Lobe pump with Servo motor


Lobe pump is available in a variety of configurations,  TU series is standard configuration . STU series is all stainless steel. It is a positive displacement cam rotor pump designed according to the strict sanitary requirements of the US 3A-02-11. It is very suitable for transportation of various highly viscous and low-viscous materials such as food processing, beverages, juices, dairy products, cosmetics, the pharmaceutical industry can be carried out with solid particulate materials, it also can be applied to CIP and SIP systems. The pump has features which do not found in other volumetric pumps, such as low pulse, high pressure, rotary two-way reversible and flexible functional combinations.

Technical specifications

Maximum flow Max.flow: 90m3 / h / 395 GPM
Maximum pressure Max.pressure: 15bar / 220 Psi
Maximum temperature Max.Temperature: 150°C / 302°F
Maximum speed Max.rev: 750 rpm
Material: 316L, 1.4404, ASME BPE 316L, 1.4435NB2Fe≤0.5%
Surface treatment: surface treatment: ≤Ra0.8μm, ≤Ra0.6μm, ≤Ra0.4μm
Certification:  3-A-02-11 No.1579; FDA 177.2600; CE-MD/06-42 No .705201402401-01
