Application

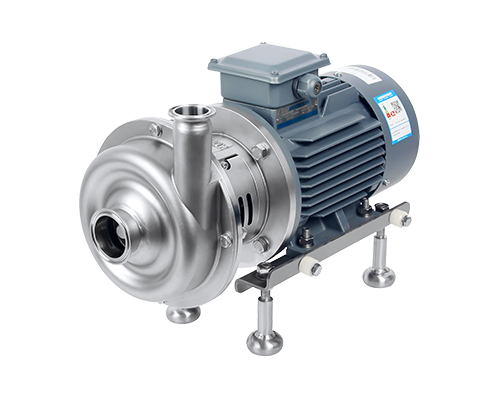

DJ-BS series is closed impeller centrifugal pump with simple internal structure and pressure-balanced design. It is suitable for various liquid transportation industries such as food and beverage, brewing,water treatment and meet CIP cleaning. SIP sterilization and so on. In addition, we have maintained the most flexible combination application for DJ-BS series pumps. For example, the pump outlet angle can be adjusted from 0° to 135°, various connection and import modes, wide range of machine seal materials.

Technical specifications

Maximum flow rate Max Flow rate: 40m3/h
Maximum head Max Head: 40 H/M
Temperature Temperature : -20 ° C to 140 ° C
Power power: 1.5KW-5.5KW
Material Material: 304 /316L, 1.431/1.4404
Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Machine seal: single machine seal, double machine seal
Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic Flange
Certification Certification:; MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II;EG/VO1935/2004
